AV00096220
10,78 €

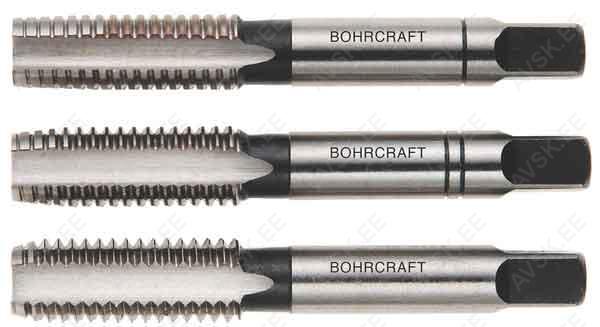

DIN 352 HSS-G Hand Taps, M4
High-quality DIN 352 HSS-G hand taps are made of durable high-speed steel (HSS) and comply with the DIN 352 standard. These taps are suitable for general use in machinable materials with tensile strength up to 800 N/mm² (22.5 HRC). Designed for cutting metric ISO threads, they are ideal for both through holes and blind holes. The three-stage cutting system ensures precise and clean threading.
Features
- Material: HSS (High-Speed Steel)
- Applications: Metric ISO threads according to DIN 13 standard
- Suitable for: General use in machinable materials
- Tensile strength: Up to 800 N/mm²
Technical Specifications
- Thread type: Metric ISO thread DIN 13
- Material: HSS (High-Speed Steel)
- Workable materials: Materials with tensile strength up to 800 N/mm²
- Cutting stages:
- Roughing tap (No. 1): Cuts the first 6–8 threads, preparing the start of the thread
- Intermediate tap (No. 2): Cuts the next 4–5 threads, ensuring threading precision
- Finishing tap (No. 3): Cuts the last 2–3 threads, completing the threading process
Dimensions:
| Size (M) | Length (L1, mm) | Thread length (L2, mm) | Tap drill size (mm) | Shank diameter (d2, mm) |
|---|---|---|---|---|
| M4 | 45 | 13 | 3,3 | 4,5 |
Applications
DIN 352 hand taps are suitable for general manual work and machining tasks in precision engineering and mechanical projects.
Note: The use of cutting oil reduces tool wear and improves the surface quality of the threads.
