Product description
The spherical and tapered diamond mounted points help you to perform various delicate tasks such as engraving, grinding contours and deburring. The set contains two spherical attachments with diameters of 3 and 5 mm as well as a tapered attachment with a diameter of 3.5 mm. With their diamond coating, they are ideal for use on hard materials like ceramics, glass, tiles and non-ferrous metals and offer impressive dimensional stability and service life. The 3 mm shaft makes the diamond mounted points easy to mount in drills, cordless screwdrivers, flexible shafts and miniature rotary tools. Keep in mind that the minimum clamping depth in the drill chuck is 15 mm.
Suitable for material
- Very suitable Ceramics, Glass, Tiles, Non-ferrous metal
Properties
- 3 diamond mounted points, Ø 3 and 5 mm spherical, Ø 3.5 mm tapered for various tasks such as engraving, grinding contours and deburring
- diamond coated for high hardness, dimensional stability and service life when used on ceramics, glass, tiles and non-ferrous metals
- 3 mm shaft for easy mounting in drills, cordless screwdrivers, flexible shafts and miniature rotary tools
- minimum clamping depth in the drill chuck: 15 mm
Technical data
- Grinding stone height 10 mm
- Shaft diameter 3 mm
- Shank version Round shank
- Material/coating property Diamond coated
- Direction of rotation Clockwise rotation
- Speed of rotation, max. 25,000 RPM
Instructions
- Keep in mind that the minimum clamping depth in the drill chuck is 15 mm.
Scope of delivery

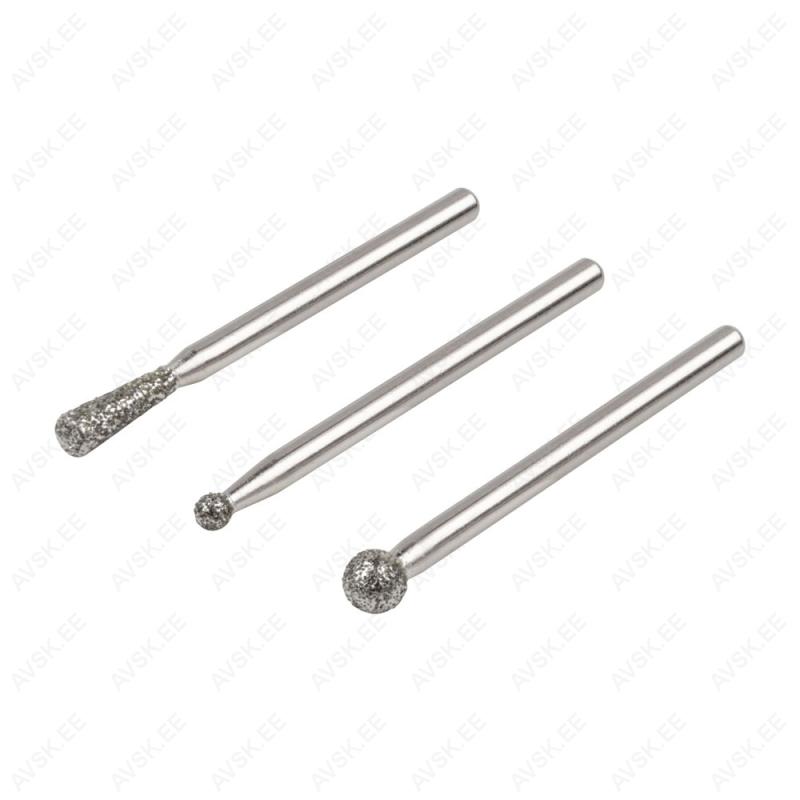

- 1 diamond mounted point, Ø 3 mm, spherical
- 1 diamond mounted point, Ø 5 mm, spherical
- 1 diamond mounted point, Ø 3.5 mm, tapered
Parts in set 3 pcs.
